This includes all of the moving parts
from your finger to the
hammers, and we add pedals works and Player piano
action parts.
If
in doubt, please go to the diagram pages and double
check to
see if you are ordering the right part. It is impossible to
give a "Back"
button to return to so many pages, so please use your browser's
"Back" button
Also,
I often give you a link to the page which tells how to make the
repair or
installation of the new part.
SEARCH THE WHOLE SITE
CLICK
HERE:
To study the Diagram of the Spinet
Action and Consoles
* * * * *
CLICK HERE FOR GRAND PIANO ACTION PARTS
* * * * *
BRIDLE STRAPS FOR ALL UPRIGHTS
Bridle Straps- (Metal clip-on type- 90)
SH1500
$ 32.50
Bridle Straps- (Cork
end for hole receiving type- 90)
SH6516 $ 27.50
Hammer Butt Felt Squares-
Mount on the lower area of the
hammer butt to cushion the top
of the jack. This solves the clicking in an action. Set of 100-
Medium-- Red-- .164 inches thick--
SH308-1/2R $ 7.50
Inserter for cork ended bridle straps- We no longer provide the simple
tool
Make one by removing the top off of a carpet tack and embed the blunt
end in one
end of a 1/4 inch wood dowel. Push the point into the back end
of the cork and
follow the instructions at:
Read
my instructions for installing Bridle Straps
* * * * *
SPINETS AND SOME CONSOLES-- General Parts
Spinet
parts are usually less massive than full uprights. You cannot get by with
upright parts.
Some Full Upright parts in the lower section of the page are
used in spinets.
Part Description: Part Number Price
You
must tell us if the wippen needs a
spoon and if it angles to the left or
right
as you look into the piano from the front.
Wippen-
Small direct blow-
Tokiwa SH3762J specify spoon direction
$ 13.25 ea
Set of 90
$ 875.00
Wippen- 24462C in graphic
Compact drop
action-
With elbow to sticker-
SH3768 check for availability
Wippen- Baldwin Hamilton-
24463B in the graphic SH3712
check for availability
Wippen-
With hook drop wire
24463C in graphic
Baldwin Acrosonic- SH3713
$ 15.00 ea
Hook Drop Wires
for
Baldwin Spinets and Consoles
7-1/2 inches
SH3779 check for availability
4-1/2 inches
SH3780 check for availability
Hammer butt-
Pratt Read S type- SH3772
$ 9.25 ea
Hammer butt-
Baldwin Hamilton
and Acrosonic-
24470C check for availability
Hammer butt-
Regular type
with stub catcher-
24470E check for availability
Hammer butt-
Aeolian
uprights-
all after 1950-
24470F
check for availability
Damp
lever-
Fits nearly all spinets and consoles-
Old Part Number- 24472A
Wood flange--
Tokiwa
SH3786J $ 6.50
ea
Full set of 70- Wood flange
SH3786J
$ 350.00
SCHWANDER
PARTS
Fits Kimballs and some other brands using Schwander actions.
For Kimball 36", 38", 40", 41", and 42"
tall pianos--
With wood hammer butt rail
Each
SH3720A
$ 6.15
Set of 90
SH3720A
$ 440.00
Schwander
wippens, jacks, key buttons, drop wires, damper levers, and damper flanges available.
SEND MAIL for a quote.
Flanges-
All purpose- Fits nearly all spinet and some
console
pianos for hammers, wippens, and other
applications--
NOT for dampers.
Dozen- Old Part
Number- Ignore it please
SH511CJ
$ 24.00
Set
of 90- Old Part Number- Ignore it please
SH511CJ
$ 165.00
Spinet (some Console)
Damper Flange with attached spring
Full
size upright damper flanges will not work.
SH3717J
$ 4.50 each or $40.75/dozen
Full set of 70
SH3717J $ 225.00
Vagias
Elbows-- For some drop action pianos
These
elbows are used to replace broken and crumbling plastic elbows
in some spinet pianos.
Old Part Number 24464
For drop action rods- Easy snap-on assembly- Replaces
50s crumbling plastic-
Set of 90-
SH3719 $ 50.55
Read my instructions for installation please!
Lifter (Drop) wires
only for drop actions-- For when wires are lost-- Threaded at both ends
You will need to buy the buttons for the top.
8 1/2 inches long
9 29/32 inches long
9 9/16 inches long
Limited supply
each wire $ 10.00
Lifter (Drop)
wires for Baldwin spinets-- With nut and rubber grommet
7-1/2 inch long
SH3779
$ 4.00 each
4-1/2 inch long
SH3780
$ 4.00 each
Hard Plastic finger nut for top of Baldwin drop wires-
Set of 100-
SH3783 $ 65.00
Lifter Wooden Wire Buttons- Dozen- 24466
in the graphic above
SH3781
$ 5.75
Lifter Wooden Wire Buttons- Set of 90-
SH3781
$ 38.00
We may only be able to get a rubber replacement for this part. You may have to
invent by drilling a hole in small sections of dowel from
a hardware store.
Rubber Lifter Wire Neoprene nuts with fibre nut embedded
(not shown)-
Mounts in a metal tab with "U"
yoke.
Mount on top of lifter wire, inserts in
recess in key lever wood- Set of 100-
SH3785 $
71.00
Rubber Lifter Wire Neopreme donut grommets for metal tab style
(not shown)-
Similar to SH3785, but the rubber
grommet mounts in the tab, but a plastic
nut is
used on top of the wire to adjust.
Used on Baldwins
along with the plastic nut below, and on other brand spinets.
Mount on top of lifter wire in metal tongue- Set of 100-
SH3784
$ 21.00
Baldwin
metal sticker plastic nut for top- Set of 100-
SH3783
$ 65.00
Weaver metal
rocker rod- (If you broke one, you will know what it is- not shown)-
SH3782
$ 5.00
To pay Keith to assemble all new lifter drop rods and fittings, scroll down this page.

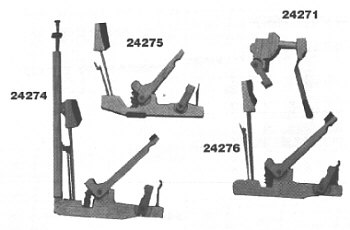

Wurlitzer
drop action with
wooden lifter attached-
A-10
24274
$ 6.85
Wurlitzer
spinet-
NOT drop action,
no
lifter that is- A-20 24275
$ 5.25
Wurlitzer
spinet-
NOT drop action,
no
lifter that is- A-30 24276
$ 5.25
Wurlitzer
spinet-
Hammer butt for A-20
24271 $
2.75
Wippen- Not shown-
24281
$ 5.90
Jack (Wurlitzer)-
24285
$ 2.00
Damper Lever (Wurlitzer)-
24289 $
2.00
Back Checks-- We can no longer get the shorter
spinet version of back checks.
Also, the wires below are the only length we
can get at this time.
Back Checks with felt shoe-
Without
wires-
Dozen
Old Part Number- 24493A
New Part Number SH530XJ $
21.00
Full set of 90-
Old
Part Number- 24493A New
Part Number SH530XJ $ 147.50
Back
Check wires- 3-5/8 inches length
100
Old Part Number- 24491A
New Part Number SH531 $
21.00
Damper Wires- 3-1/2 inches length
100
Old Part Number- 24490A
New Part Number SH536 $83.00
Bridle wires-
100
Old Part Number- 24492A
New Part Number SH532 $25.00
Learn how to repair and adjust Backchecks
Damper
repair springs- 24481B in the graphic
Tucks
under damper flange screw- 100-
SH1538B
$ 91.50 or $12/dozen
Read
my damper repair section
Jack springs- Set of 100-
24479 in the graphic-
3/4 inch for spinets
and some consoles only
SH3776
$ 18.00
SPINETS
AND SOME CONSOLES-- SHANK REPAIR
Part Description: Part Number Price
Hammer shanks (upright only)- Hard Maple- Dozens only-
Please measure the diameter of
your piano's shanks to be sure you order correctly.
7/32" x 5 1/4" (usually only found on full sized uprights--
Some excetions) SH504
$7.00 per doz.
3/16" x 4 1/4" (usually only found on spinets and
many consoles)
SH3716 $
5.00 per doz.
Same as
above- Set of 100-
$ 24.00
Hammer
shank repair sleeves-
Slit Nickel plated- 2 inch long- One size fits all- Dozen-
SH3506 $ 5.00
Same as above- 100-
$ 38.00
Hammer shank repair sleeves-
Not slit- Brass tube- 7/32"-
Dozen- I only use this kind- Full Upright size
SH3505 $ 12.00
100
$ 90.00
Not slit-
Brass tube- 3/16"- Dozen- (Limited supply on hand)
Inquire $ 4.55
Instructions
for using brass sleeves
Read
my instructions on
Panic hammer repair, and
Hammer shank repair
See Regulating and Repair Tools
Hammer Felt Hardening Treatments
SPINETS AND SOME CONSOLES-- JACKS
This jack for spinets and many consoles
is about 2 inches high. Measure ONLY the jack, not including the jack flange.
If yours is 3 inches high, go to the full sized upright section down the
page for your jack.
See illustration in
Full Upright section below to see what you may need.
See the Diagram
of a drop action of small piano action See part 16 in diagram.
Part Description: Part Number Price
Jacks for spinets and consoles with
shorter jacks- With flanges-
Dozen
SH3790 $47.00
Full set of 90
SH3790
$295.00
Jack Springs-- See above
Hammer
return spring replacement-
Old Number 24480
Screws into damper rest bar- Dozen only-
SH1519B
call
Same
- 100 springs-
SH1519B NA
Hammer
butt springs (100 springs) See in top of graphic below.
See Numbers 24483, 24484, and 24485 in graphic down the page
(Like original factory part, but hard work- Spinet type)
SH3777
$ 18.25
Regulating
Buttons for all types of pianos
DIAGRAMS OF FULL
SIZE UPRIGHT PIANO ACTIONS:
To study the Diagram
of the Full Upright
FULL SIZE UPRIGHTS-- General Parts
Down right essential to restore and repair the upright piano.
Part Description: Part Number Price
Back Checks with felt shoe-
Without wires-
Dozen
Old
Part Number- 24493A New Part
Number SH530XJ $ 21.00
Full set
of 90-
Old Part Number- 24493A
New Part Number SH530XJ $147.50
Back Check wires- 3-5/8 inches length
100
Old Part Number- 24491A
New Part Number SH531
$ 21.00
Damper Wires- 3-1/2 inches length
100
Old Part Number- 24490A
New Part Number SH536
$ 83.00
Bridle wires-
100
Old Part Number- 24492A
New Part Number SH532 $
25.00
Learn how to repair and adjust Backchecks
Butt plate to rail repair clips:
There are several repairs made with
these
brass clips. They are absolutely essential
where the hammer
butt rail is brass, or
where brass butt parts are used.
Clip for when tongue is
broken
at the groove-
Old No. 24495
SH513A $ 5.85
Clip for when tongue is
broken at screw hole-
Old No. 24496 SH513B
$ 5.85
Clip for old Kimballs
using the same
"A" and "B"
Old No. 24497KA SH513KA
$ 5.85
Old No. 24498KB
SH513KB $ 5.85
Hammer Butts--
Butt, stump, and felt parts with hole to receive hammer shank-- See
Diagram
Wooden Flange Type-- Each-- Flange included
SH507
$ 8.95
Wooden Flange Type-- Dozen
-- Flange included
SH507 $ 103.25
Wooden Flange Type--
Set of 90-- Flange included
SH507 $ 595.00
SH507 is the most common butt / flange arrangement
found in uprights
Brass
Rail type Butt (purchase brass clips elsewhere on this page)
Each SH509
$ 7.95
Brass Rail type Butt (purchase brass clips elsewhere
on this page) Dozen SH509
$ 95.00
Billings Metal Flange-- Add to SH509 for Billings
butt arrangement-- Each SH512
$4.50
Billings Metal Flange-- Add to SH509
for Billings butt arrangement-- Dozen SH512
$ 21.00
Billings Metal Flange-- Add to SH509 for
Billings butt arrangement-- Set of 90 SH512
$ 290.00
Upright
butt catchers (catch the back check mounted on stub from hammer butt)
Dozen only Old part
Number-- 24434 See graphic below
SH2507 $ 41.50
Hammer
butt brass plate replaces broken one- With screws- 24500 above
SH518A
$ 13.85 per Doz.
Hammer butt brass plate
repair for old Kimball- No screws- 24502 above
SH518-1/2
$ 14.85 per Doz.
Brass Flange Rail Duplication Send sample of old rail. SH595 $ 255.00 per section--subject to price change
Damper Flange repair for
Kimball with springs attached- Old part number 24449
SH539
$ call
Penistan Wippen repair part- This is
a genious invention for saving a wippen
with one side broken- See Old Number 24456 in above graphic
SH298
$ 2.50 each
I have used these with very satisfactory results.
This only works with wippens which receive a sticker
centered in a cavity
in the
under side of the wippen where one skirt of the wippen is destroyed.
Screw provided. You must mount
the clip with the sticker in place, then
shorten the pin with diagonal pliers or nippers.
Free
advice: Smile-- you will get it right by and by :-)
Hammer return spring replacement-
Old Number 24480
Screws into damper rest bar- Dozen only-
SH1519A
call
Same
-
100 springs-
Hammer butt springs
(100 springs) See in top of graphic below.
See Numbers 24483, 24484, and 24485 in graphic below
(Like original factory part, but hard work- 2" Long tail- Medium
tension)
SH519A $ 18.50
(Like original factory part, but hard work- 2" Long
tail- Heavy tension)
SH519B $ 30.00
(Like original factory part, but hard work-
Spinet type)
SH3777
$ 18.25
Straight
Spoons-
Used at the back end of the wippen
to
activate the damper levers.
See Old Number 24486
in graphic SH528
$ 20.00/100.
Regulating Buttons- Wood
This button is commonly used as a stop
for the
jack.
Some other uses too, as in players etc.
You must buy all three parts separately
and assemble them in the piano action.
See Old Number 24487 in graphic SH541
$ 17.50 /100
Regulating Felt Punchings- Felt round piece on the bottom of the regulating buttons. (100) See Felt Parts Page
Regulating Screws- 1 1/8 inch
long.
Has the ring
type top needing tool No. 16124 with handle 15152 to adjust.
See Old Number 24488 in graphic above
SH540 $ 2.50 doz.
Flange Screws- Replaces rusty or broken
screws. 24489 in graphic abpve-
Zink plated. (Per 100)
Size- 8 x 3/4"
SH1547
$ 9.00
Size- 9 x 7/8"
SH1548
$ 16.50
Regulating
Screw replacement-
When the screw ring or tap breaks off
On Steinway metal
rail, drill hole and use sheet metal screw.
Exceptional life saver when
jack
regulating button busts-
Dozen
only-
SH1539 $ 7.45
Read my instruction
for adjusting a jack
And,
how to repair a jack which has come loose.
Flanges-
All purpose- Fits nearly all full sized upright
pianos for hammers, wippens, and other applications
NOT
for dampers.
Dozen-
SH511B $ 39.00
Steinway Hammer Butt Flange DOUBLE for Hammer and
Damper-
SH6409 $ 8.00ea.
Steinway Hammer Butt Flange for Hammer only 1 1/16th inch long-
SH6410 $8.00 ea.
Steinway Wippen Flange 1 1/8th inch long-
SH6305 $
3.25 ea.
If you have a Steinway, you MUST buy the Steinway flanges since
they ARE different.
Damper
with flange and
spring assemblies-
(If
unsure, send old one) SH537W
$ 6.95
Dozen
SH537W
$ 83.00
Full set for upright
SH537W
$ 392.00
(See Felt
Parts for heads
and felts)
Damper flange with spring attached like original part-
SH514J
$ 4.50
Full set of 70 damper flanges
SH514J $ 197.00
Billings flange-- Metal "Y" type clip-- Each
SH512 $ 4.500
Billings flange-- Metal "Y" type clip--
Dozen Flange as in 24433 in graphic
SH512 $ 21.00
Billings flange-- Full Set -- Flange as in 24433
in graphic
SH512 $ 290.00
Double flange for full sized upright-- hold hammer butt AND
damper
NOTE: Damper return
spring is included on the double flange.
Each (limited availability)
SH514-1/2 $ 10.00
Steinway damper with brass plate SH6404 $ 15.95 ea
Damper repair springs-
Tucks under damper
flange screw- Dozen only-
Old Number 24481A in graphic
SH1538A
$ 11.00
Jack springs- Set
of 100- 24478 in the graphic-
1 inch for spinets
and some consoles only
SH527A
$ 13.50
Read instruction on jack spring replacement.
| STICKER REPAIR: Remove the action from the piano as in Chapter Five. Remove a good sticker and wippen assembly. The sticker is attached at the lower rail, and the wippen to its own rail. Lay the replacement sticker beside the one from the piano, and cut the dowel so that it will allow the new sticker to be the exact same length as the old one. Attach the new sticker to the wippen by sliding the center pin our just far enough for the sticker end to insert into the groove of the wippen. Carefully slide the center pin back into place. Try not to damage the little felt bushing in the wippen. Glue in place and lay the sticker/wippen assembly flat while drying so that is is true. |
Sticker- Universal Repair- Rod from rear of key lever up to wippen- [
Diagram I, #12 ]
Can be adjusted to fit all uprights-
4 to 6½ inches- No. in graphic- 24436A
SH510A $ 12.00
6½ to 9 inches- No. in graphic-
24436B
SH510B
$ 12.00
Wippen
for upright- sticker type-
All wippens include all parts
as in [ Diagram I, # 14, 19,
16, 15, 21 and flanges and
bridle trap wire attached ]
24457 in
SH523 SJ
$13.75
Wippen for upright- dowel or capstan type activation from below- 24458
in the photo SH523DJ
$ 13.75
Both SH523 and SH523-1/2--
Key Bushing Cauls Used to hold new
bushing felt in place (not pictured)
This is
the favorite in production shops- Durable and accurate-- HDPE resists glue. Available in four sizes:
.147"
per dozen
SP147
$25.00
.162"
per dozen
SP162
$25.00
.138"
per dozen
SP138
$25.00
.125"
per dozen
SP125
$25.00
Key
Button Stock-- Not lacquered
Uprights--
2-1/4 inch wide-- Old Part Number 24706A strip of 9
SH520A
$ 48.50each
FULL
SIZE UPRIGHT: JACKS
This jack for full
uprights and some consoles is about 3 inches high.
Measure ONLY the jack, not including the jack flange.
If yours is 2 inches high, go
to the spinet section up the page for your jack.
Jacks for Full Sized
Uprights with flanges
Dozen-
SH526-1/2
$ 46.00
Set of 90-
SH526-1/2 $ 280.00
Jack Springs-- See up the page
FULL SIZE UPRIGHT: HAMMER SHANK REPAIR
Part Description: Part Number Price
Learn how to repair a broken hammer. Second location
Hammer head extractor-- Absolutely essential
for replacing hammers-
Uprights-
You must order this tool to take the old hammers off.
SH130A
$ 46.75
Clamp- Used with Hammer head extractor
This clamp is used
where a shank is broken. It is attached so that the
hammer can be pulled with the Extractor.
SH130B
$ 32.50
Hammer shanks (upright only)-
Hard Maple- Dozens only-
Please measure the diameter of your piano's shanks to be sure
you order correctly.
7/32"
x 5 1/4" (usually only found on full sized uprights-- Some excetions)
SH504
$ 7.00 per doz.
3/16" x 4 1/4" (usually only found on spinets and many consoles)
SH3716 $ 5.00 per doz.
Same as above- Set of 100-
$ 24.00
Hammer shank repair sleeves-
Slit Nickel plated- 2
inch long- One size fits all- Dozen-
SH3506
$ 5.00
Same as above- 100-
$ 38.00
Hammer shank repair
sleeves-
Not slit-
Brass tube- 7/32"- Dozen- I only use this kind- Full
Upright size SH3505
$ 12.00
per 100
$ 90.00
Not slit- Brass tube- 3/16"- Dozen- (Limited
supply on hand)
Inquire $
4.55
Instructions
for using brass sleeves
Hammer shank Cutting Tool- Nips the shank with a clean cut-- Plier type tool- SH237 $ 12.50
Hammer shank reducer-- Use to shave hammer shank if it is too large.
Does smooth job- SH75 $ 26.25
Universal handle needed
Read about voicing hammers in the Repair Section
Hammer felt hardener- Hammers are often too soft when new. ORDER HERE
Drills for hammers and shanks- See
Regulating and Repair Tools
Read my instructions on panic hammer repair, and hammer shank repair.
KEITH WILL DO THE REPAIR FOR YOU BY MAIL:
BRIDGE REPAIR PARTS-- All Uprights
Part Description: Part Number Price
Bridge
pins- Pointed at one end and round on the other- copper plated steel
#6
.076 dia
24313A $ 18 per hundred
#7
.086 dia
24313B $ 18 per hundred
#8 .096 dia
24313C $ 18
per hundred
#9
.109 dia
24313D $ 22 per hundred
Tuning Pin Wooden Bushings-- SEE TUNING PIN PAGE
Send E-Mail for Bridge Rebuilding by our craftsman
GRAND
PIANO
ACTION PARTS
GENERAL ACTION PARTS
FELT PARTS FOR GRANDS AND UPRIGHTS
CENTER
PINS
AND TOOLS
This covers the pins used in all flanges and hinged
points in all actions.
PEDALS
GO TO THE PEDAL HARDWARE PAGE for Pedal Hardware:
Don't try to re-use the old pedals in a restoration. We can get you a very authentic replacement.
Upright Pedals Upright graphic and prices.
Grand Pedals Grand graphic and prices.
CLICK HERE TO GO TO: TUNING PINS, BRIDGES, AND PIN BLOCKS
LUBRICANTS AND LIQUID TREATMENTS- CLICK HERE
PLAYER
PIANOS AND REED / PUMP ORGAN SUPPLIES
GO TO THE
PLAYER
PIANO PARTS PAGE:
Also, we suggest you purchase Mr. Reblitz' book on Player Piano Repair on the Book Page.
BUY THE TOOLS TO MAKE THE REPAIRS
ORDER BY PHONE WITH CREDIT CARD
Call Toll Free at: 1 (800) 338-8863
OR:
Go
to Mail Order Form for printing:
Online
help available
