GRAND PIANO HARDWARE

Part Description                                                                                                           Part Number            Price


Grand Keyboard Spring--  Key cover
      comes to rest on this.  Old No. 30549   SH959         $  34.00

Grand Action Shift Springs--  Returns the
      key action frame after using quiet pedal.
      Blued Steel-  16 gage steel
      Length            Width     Old No.
         8 7/16"          1 3/4 "     30550A       SH962         $  12.20
         5 5/16"          1 3/4 "     30551         SH963          $  12.20

Grand Fallboard (key lid) Hinges--

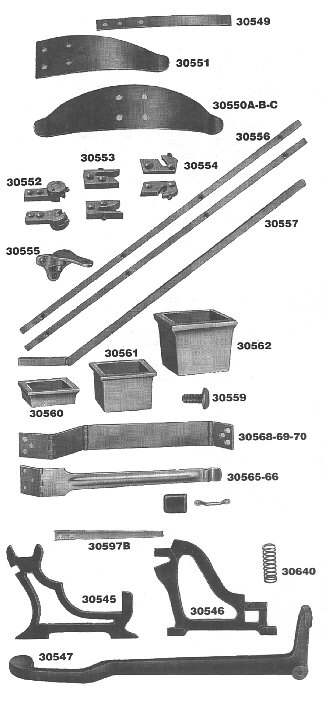

      See illustration                  Old No.
                                              30552         SH1068     $ 27.95 pair
                                              30553         SH1066     $ 22.00 pair
                                              30554         SH1062     $ 22.00 pair

Grand Cover Catch--  Receives pin from lid
      Satin Finish                                            30555A  not available
      Polished Chrome                                   30555A  not available
      Modern Style with round receiver below
      the pin.  Two pieces                                  SH939 not available

Grand Desk Brass Slides--
      Desk slides on these- Pair
      Can be used to replace wooden slides.
      14 inch   (Old Part #- 30556)                 SH1072      $ 41.00



Grand lid support (old part # 30557)
      Solid brass- Hinged-
      Short arm 2", long arm 12"-                     SH935       $ 22.50
      Same as above but nickel
SH936       $ 29.50







Grand Leg Sockets--  These are much more substantial than the ferrules elsewhere on this page.
          Solid cast brass-- For nickel plated sockets, order these and send them off to be plated.

          Inside Dimension            Height              Metal                        Old Part No.                Ordering No.         Price
                    1 1/2"                         5/8"             Polished Finish        Graphic No. 30560A               SH964A        $ 32.50 each
                    1 3/4"                       1 1/2"            Polished Finish        Graphic No.  30561A              SH964B        $ 37.50 each
                       2"                             2"               Polished Finish        Graphic No.  30562A              SH964C        $ 41.50 each




Grand Desk Rest--

          Solid Brass---  7 1/8 inch from knuckle to end
          Complete with staple, rubber cap, and screws.
          Satin Brass Finish      Old Part Number  30565                           SH941      $ 49.50
          Polished Nickel         Old Part Number  30566                           SH942      $ 57.50
          Rubber caps only  (Cover parts)  Old Part Number  30567A      SH941C    $   2.00








Desk Support Hinge--
 Solid brass four flap hinge. In graphic, see 30568-69-70
          For desk that fold either forward of backward.  Furnished with screws.
          1 inch wide by 9 inch long-                  Satin Finish                                                                   SH940N    $ 65.65
          1 inch wide by 6 3/16 inch long-          Satin Finish      For spinet pianos                                 SH940S    $ 26.75

Desk Butt (Flap) Hinges-- 1-3/4" by 1"
           Brass                                                                                                                                 SH567B      $ 5.00 each
           Nickel                                                                                                                              SH567N       $ 10.50 each

Grand Quiet Pedal Lever--

This lever is underneath the piano and activates the keybed when the pedal is used.
           You may have to do some improvising to make it fit perfect. Old Part No. in graphic 30547      SH1074       $ 29.90

Steinway Sostenuto Pedal Spring                                                                                                      SH961         $ 20.00

Part Description                                                                                                           Part Number            Price


Grand Action Brackets--  Cast iron with screws--  Needed if one breaks
           Be sure the bracket in the picture is the same as yours.
           If the new brackets are shorter than yours, add shims of maple wood
           under the feet to lift the bracket into proper relationship with the rest of
           the action. Also, the hammer rail may need to be remade or shimmed
           to level the hammers with the action. Regulation will add the final touch.
           Aeolian-American No. 108 Type
           See 30546 in the above graphic              SH1076    $  18.55 ea
           Full set of three or four of either style                       $   14.00 ea
         Mason & Hamlin since about 1975          305465B   Not Available
         Mason & Hamlin since about 1975          305465C   Not Available

Grand Desk Support Hinge--
       Solid brass, satin finish
       Square plate 1 1/8 inch by 3 3/4 inch
       Hinge is 5/8 inch by 3 5/8 inch
       Common on older Aeolian pianos              30543      Not Available

Fallboard hinges--  At ends of key cover
       Heavy brass, satin finish,
       1/4 inch thick by 4 7/8 inch long                30576A    Not Available
       1/8 inch thick by 4 1/2 inch long                30576A    Not Available

Grand Piano Lock--

Complete with plunger, escutcheon,
        (That's the little key lock diddly) and key.
        Satin brass finish--
        Selvage plate 5/8" by 4 1/16"
        Square ends to plate.
        Key alone fits many grand locks
        Grand lock with SQUARE end plates      SH965        $ 108.25
        Escutcheon only                                       SH965E     $  3.00
        Key only for grand locks                          SH965K     $  13.00

        Grand lock with ROUND end plates        Not available



Mason and Hamlin Style Desk Hinge

See Part Number 301078 in the graphic                                                                               SH1095      $ 12.00 each

Grand piano fall board lock key-- Steinway
        Solid brass with lyre design for Steinway grands before 1971                                               SH965KS    $ 58.00

Grand Piano Lock Escutcheon--Steinway, Mason & Hamlin; Brass                                     SH965ES     $27.50

Grand Leg Plates--  Cast iron, Set of 3 units (legs) -- Two interlocking plates to each unit.
        Square--  4 1/4 inch by 3 1/2 inch                                                                                         305715     Not Available
        Round--  4 3/8 inch diameter                                                                                                 SH966      $ 42.00

REPAIR THE OLD GRAND PIANO DESK
        Channel Brass for Repairing Music Desks on Grand Pianos with lift and drop desk--
        For Square Grands, the Upright repair channel up the page may work. Repair split
        or worn music desk with these brass reinforcements. Add to new desk to prevent
        abuse over the years.                 Old Part Number-- 30577                                                   SH1092      $ 17.50

REPAIR THE OLD SPINET AND CONSOLE DESK
        Channel Brass for Repairing Music Desks-- Repair split or worn music desk with these
        brass reinforcements. Add to new desk to prevent abuse over the years.
        For most Upright Spinets           Old Part Number 30578                                                      SH1093       $ 16.50





Grand Agraffes
         Some high quality uprights also had grand piano type agraffes.
         Go to the Restringing Page for agraffes and tools for them.

         See our Instructions on Agraffe Repair







Key Pins--  Mount between two middle keys to support desk area or key top board--
               2 3/4 inch long-- threaded 8/32 one end-- Two hex nuts-- Nickel plated--              30579             Not Available

Grand Hammer Rest Rail Prop--  Support piece in nearly all grand actions--
               2 3/4 inch length               Old Part Number 30580B (includes nuts)                      SH1027           $ 16.95

Grand Hammer Rail Slotted Prop Nuts-   See in graphic above at top right                       SH925             $ 1.00 ea.

Grand Lid Support Cups--  Receive the top end of the lid prop
               Brass Finish--   Old Part Number 30586                                                                 SH938              $  6.00
               Nickel Finish--                             30586N                                                              SH938N           $  8.60
